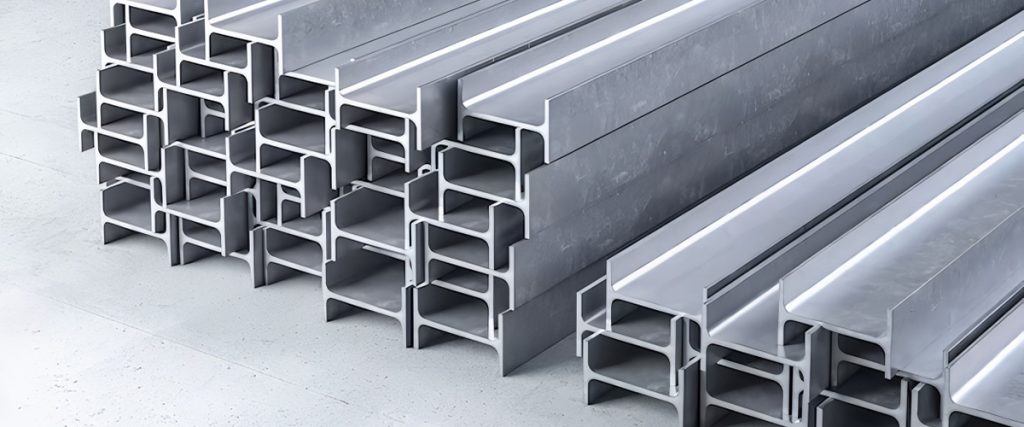

Beams

Beams are long, straight structural members engineered to carry loads primarily through bending resistance. Rolled or fabricated in profiles such as I-sections (universal beams), H-sections (universal columns), T-sections and box beams, they combine high moment of inertia with efficient material use to span large distances with minimal deflection. Commonly made from mild steel (for general framing) or high-strength alloys (for heavy-duty and long-span structures), beams form the “skeleton” of almost every modern building, bridge or industrial installation.

Building frames: Primary support for floors, roofs and mezzanines in commercial residential construction
Bridge girders: Main load-carrying elements in highway and railway bridges, including box and plate girders
Cranes & gantries: Rails and runway beams supporting overhead traveling cranes in warehouses and shipyards
Heavy equipment bases: Structural backbone for mining shovels, dumpers and large industrial presses

Types of Beams

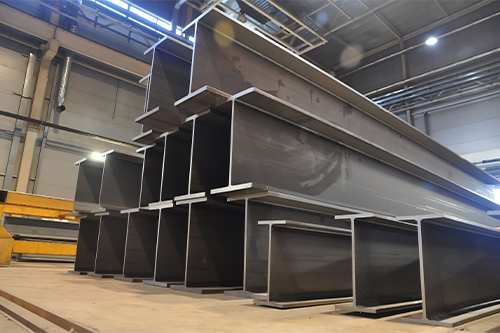

UBs (Universal Beams) / I-Beams

UBs are hot-rolled “I”-section beams with relatively narrow flanges. Optimized for bending about their strong axis, they offer an excellent strength-to-weight ratio for general structural framing.

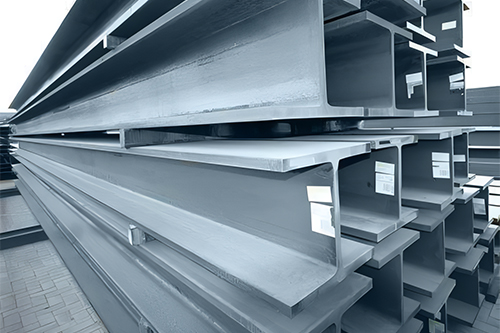

UCs (Universal Columns) / H-Beams

UCs are wide-flange “H”-section beams with flanges nearly as wide as their depth. Their large moment of inertia and shear area make them ideal for heavy-load columns and long-span beams.

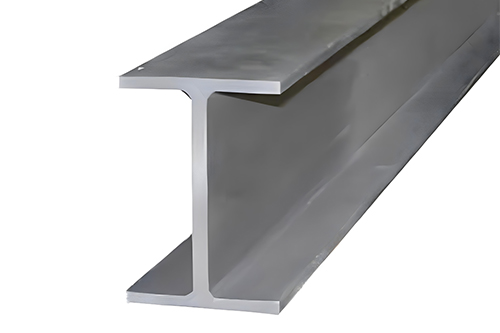

ISMBs (Indian Standard Medium Weight Beams)

ISMBs are India’s BIS-specified series of medium-duty I-beams, rolled to IS 808 dimensions. They match global UBs in profile but have flange-and-web thicknesses tailored to Indian design loads.

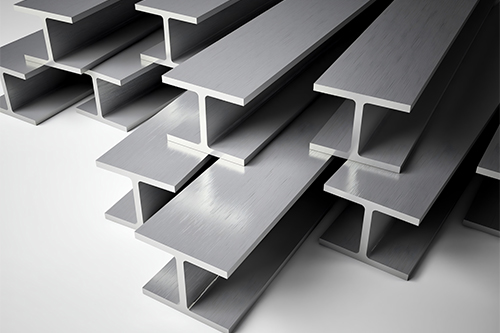

NPBs (Narrow-flange Plate Beams)

NPBs are built-up girders fabricated by welding slender flanges to a plate web. They allow custom depths and section moduli when rolled sections aren’t available in the required size.

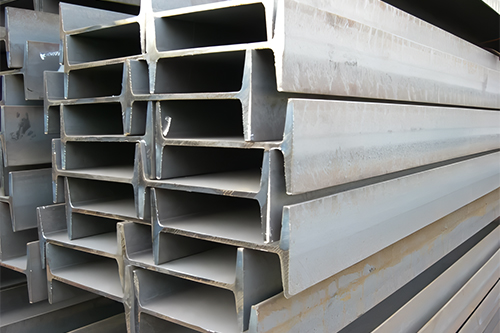

WPBs (Wide-flange Plate Beams)

WPBs are plate girders with wide, plate-fabricated flanges. Functionally similar to rolled H-beams but fully customizable, they deliver very high load capacity for bridges, cranes, and heavy industrial structures.

For more detailed information on our grades and specifications, please visit our Grades & Specifications page.

Grades & Specifications

Beams Weight Chart

Section	Sectional Weight (kg/m)	Height (mm)	Width (mm)	Web Thickness (mm)	Flange Thickness (mm)
UB 152 x 89 x 16	16	152.4	88.7	4.5	7.7
UB 203 x 102 x 23.1	23.1	203.2	101.9	5.4	9.3
UB 203 x 133 x 25	25.1	203.2	133.2	5.7	7.8
UB 203 x 133 x 30	30	206.8	133.9	6.4	9.6
UB 254 x 146 x 31	31.1	251.4	146.1	6	8.6
UB 254 x 146 x 37	37	256.1	146.4	6.3	10.9
UB 254 x 146 x 43	43	259.6	147.3	7.2	12.7
UB 305 x 165 x 40.3	40.3	303.4	165	6	10.2
UB 305 x 165 x 46.1	46.1	306.6	165.7	6.7	11.8
UB 305 x 165 x 54	53.8	310.4	165.9	7.9	13.7
UB 356 x 171 x 45	45	351.4	171.1	7	9.7
UB 356 x 171 x 51	51	355	171.5	7.4	11.5
UB 356 x 171 x 54	54.1	402.6	177.7	7.7	10.9
UB 356 x 171 x 57	57	358	172.2	8.1	13
UB 356 x 171 x 67	67.1	363.4	173.2	9.1	15.7
UB 406 x 140 x 39	39	398	141.8	6.4	8.6
UB 406 x 140 x 46	46	403.2	142.2	6.8	11.2
UB 406 x 140 x 53	53.3	406.6	143.3	7.9	12.9
UB 406 x 178 x 60	60.1	406.4	177.9	7.9	12.8
UB 406 x 178 x 67	67.1	409.4	178.8	8.8	14.3
UB 406 x 178 x 74	74.2	412.8	179.5	9.5	16
UB 457 x 152 x 52	52.3	449.8	152.4	7.6	10.9
UB 457 x 152 x 60	59.8	454.6	152.9	8.1	13.3
UB 457 x 152 x 67	67.2	458	153.8	9	15
UB 457 x 152 x 74	74.2	462	154.4	9.6	17
UB 457 x 152 x 82	82.1	465.8	155.3	10.5	18.9
UB 457 x 191 x 106	105.8	469.2	194	12.6	20.6
UB 457 x 191 x 133	133.3	480.6	196.7	15.3	26.3
UB 457 x 191 x 161	161.4	492	199.4	18	32
UB 457 x 191 x 67	67.1	453.4	189.9	8.5	12.7
UB 457 x 191 x 74	74.3	457	190.4	9	14.5
UB 457 x 191 x 82	82	460	191.3	9.9	16
UB 457 x 191 x 89	89.3	463.4	191.9	10.5	17.7
UB 457 x 191 x 98	98.3	467.2	192.8	11.4	19.6
UB 533 x 165 x 66	65.7	524.7	165.1	8.9	11.4
UB 533 x 165 x 74	74.7	529.1	165.9	9.7	13.6
UB 533 x 165 x 85	84.8	534.9	166.5	10.3	16.5
UB 533 x 210 x 101	101	536.7	210	10.8	17.4
UB 533 x 210 x 109	109	539.5	210.8	11.6	18.8
UB 533 x 210 x 122	122	544.5	211.9	12.7	21.3
UB 533 x 210 x 82	82.2	528.3	208.8	9.6	13.2
UB 533 x 210 x 92	92.1	533.1	209.3	10.1	15.6
UB 610 x 229 x 101	101.2	602.6	227.6	10.5	14.8
UB 610 x 229 x 113	113	607.6	228.2	11.1	17.3
UB 610 x 229 x 125	125.1	612.2	229	11.9	19.6
UB 610 x 229 x 140	139.9	617.2	230.2	13.1	22.1
UB 610 x 305 x 149	149.2	612.4	304.8	11.8	19.7
UB 610 x 305 x 179	179	620.2	307.1	14.1	23.6
UB 610 x 305 x 238	238.1	635.8	311.4	18.4	31.4
UB 762 x 267 x 147	146.9	754	265.2	12.8	17.5
UB 762 x 267 x 173	173	762.2	266.7	14.3	21.6
UB 762 x 267 x 197	197	769.8	268	15.6	25.4
UB 762 x 267 x 220	220	779	266	16.5	30

Section	Sectional Weight (kg/m)	Height (mm)	Width (mm)	Web Thickness (mm)	Flange Thickness (mm)
UC 152 x 152 x 23	23	152.4	152.2	5.8	6.8
UC 152 x 152 x 30	30	157.6	152.9	6.5	9.4
UC 152 x 152 x 37	37	161.8	154.4	8	11.5
UC 152 x 152 x 51	51	170.2	157.4	11	15.7
UC 203 x 203 x 37	37.3	200	200	6.1	9
UC 203 x 203 x 46	46.1	203.2	203.6	7.2	11
UC 203 x 203 x 52	52	206.2	204.3	7.9	12.5
UC 203 x 203 x 60	60	209.6	205.8	9.4	14.2
UC 203 x 203 x 71	71	215.8	206.4	10	17.3
UC 203 x 203 x 86	86.1	222.2	209.1	12.7	20.5
UC 254 x 254 x 107	107.1	266.7	258.8	12.8	20.5
UC 254 x 254 x 132	132	276.3	261.3	15.3	25.3
UC 254 x 254 x 167	167.1	289.1	265.2	19.2	31.7
UC 254 x 254 x 73	73.1	254.1	254.6	8.6	14.2
UC 254 x 254 x 89	88.9	260.3	256.3	10.3	17.3
UC 305 x 305 x 118	117.9	314.5	307.4	12	18.7
UC 305 x 305 x 137	136.9	320.5	309.2	13.8	21.7
UC 305 x 305 x 158	158.1	327.1	311.2	15.8	25
UC 305 x 305 x 198	198.1	339.9	314.5	19.1	31.4
UC 305 x 305 x 240	240	352.5	318.4	23	37.7
UC 305 x 305 x 283	282.9	365.3	322.2	26.8	44.1
UC 305 x 305 x 97	96.9	307.9	305.3	9.9	15.4
UC 356 x 368 x 129	129	355.6	368.6	10.4	17.5
UC 356 x 368 x 153	152.9	362	370.5	12.3	20.7
UC 356 x 368 x 177	177	368.2	372.6	14.4	23.8
UC 356 x 368 x 202	201.9	374.6	374.7	16.5	27
UC 356 x 406 x 235	235.1	381	394.8	18.4	30.2
UC 356 x 406 x 287	287.1	406.8	399	22.6	36.5

Section	Height (mm)	Width (mm)	Web Thickness (mm)	Flange Thickness (mm)	Weight (kg/m)
ISMB 100 x 50	100	50	3.6	6.9	8.34
ISMB 100 x 70	100	70	4	7	11.50
ISMB 116 x 100	116	100	4.8	8.4	23.00
ISMB 120 x 58	120	58	3.8	6.1	11.20
ISMB 125 x 70	125	70	4	7.1	13.20
ISMB 140 x 66	140	66	4.3	6.9	14.40
ISMB 140 x 73	140	73	4.5	7	13.70
ISMB 150 x 75	150	75	5	7.6	15.00
ISMB 160 x 74	160	74	5.1	8	17.90
ISMB 150 x 125	150	125	5.4	9	37.2
ISMB 150 x 150	150	150	6	10	37.20
ISMB 175 x 85	175	85	5.3	8.4	19.50
ISMB 180 x 82	180	82	5.3	8.1	21.90
ISMB 200 x 90	200	90	5.7	9	26.20
ISMB 200 x 100	200	100	5.7	9	25.90
ISMB 200 x 150	200	150	6.1	10.2	52.09
ISMB 225 x 110	225	110	6	9.5	31.30
ISMB 250 x 125	250	125	6.5	10.2	38.10
ISMB 250 x 125	250	125	6.7	11.4	47.62
ISMB 300 x 140	300	140	6.7	10.2	45.10
ISMB 350 x 140	350	140	7.4	11.4	52.90
ISMB 400 x 140	400	140	8.1	13	62.60
ISMB 450 x 150	450	150	8.8	14.1	73.10
ISMB 500 x 180	500	180	9.5	16	87.70
ISMB 600 x 210	600	210	10.2	17.8	122.60

Section	Sectional Weight (kg/m)	Height (mm)	Width (mm)	Web Thickness (mm)	Flange Thickness (mm)
NPB 100 x 55 x 8.10	8.1	100	55	4.1	5.7
NPB 180 x 90 x 15.4	15.4	177	91	4.3	6.5
NPB 180 x 90 x 18.8	18.8	180	91	5.3	8
NPB 180 x 90 x 21.27	21.3	182	92	6	9
NPB 200 x 100 x 17.95	18	196.4	100	4.5	6.7
NPB 200 x 100 x 18.4	18.4	197	100	4.5	7
NPB 200 x 100 x 22.36	22.36	200	100	5.6	8.5
NPB 200 x 100 x 22.4	22.4	200	100	5.6	8.5
NPB 200 x 100 x 25.09	25.09	202	102	6.2	9.5
NPB 200 x 100 x 25.1	25.1	202	102	6.2	9.5
NPB 250 x 125 x 30.11	30.11	250	125	6	9
NPB 270 x 135 x 30.73	30.73	267	135	5.5	8.7
NPB 270 x 135 x 36.07	36.07	270	135	6.6	10.2
NPB 300 x 150 x 36.53	36.53	297	150	6.1	9.2
NPB 300 x 150 x 42.24	42.24	300	150	7.1	10.7
NPB 300 x 150 x 42.26	42.26	274	136	7.5	12.2
NPB 300 x 150 x 49.32	49.32	304	152	8	12.7
NPB 350 x 170 x 50.22	50.22	357.6	170	6.6	11.5
NPB 350 x 170 x 57.10	57.1	360	172	8	12.7
NPB 350 x 170 x 66.05	66.05	364	180	9.2	14.7
NPB 400 x 180 x 57.38	57.38	397	180	7	12
NPB 400 x 180 x 57.4	57.4	397	180	7	12
NPB 400 x 180 x 66.3	66.3	400	180	8.6	13.5
NPB 400 x 180 x 66.31	66.31	400	182	8.6	13.5
NPB 400 x 180 x 75.67	75.67	404	190	9.7	15.5
NPB 400 x 180 x 75.7	75.7	404	182	9.7	15.5
NPB 450 x 160 x 51.9	51.89	450	160	7	11
NPB 450 x 160 x 56.1	56.09	452	160	7.5	12
NPB 450 x 160 x 63.1	63.01	456	162	8	14
NPB 450 x 160 x 69.4	69.37	458	163	9	15
NPB 450 x 190 x 104.00	104	460	194	12	19.6
NPB 450 x 190 x 67.16	67.16	447	190	7.6	13.1
NPB 450 x 190 x 67.2	67.2	447	190	7.6	13.1
NPB 450 x 190 x 77.58	77.58	450	190	9.4	14.6
NPB 450 x 190 x 77.6	77.6	450	190	9.4	14.6
NPB 450 x 190 x 92.37	92.37	456	192	11	17.6
NPB 450 x 190 x 92.4	92.4	456	192	11	17.6
NPB 500 x 180 x 69.3	69.2	494	180	8	13
NPB 500 x 180 x 72.2	72.11	496	180	8	14
NPB 500 x 180 x 78.9	78.87	498	181	9	15
NPB 500 x 180 x 85.7	85.66	500	182	10	16
NPB 500 x 180 x 89.7	89.61	500	183	11	16
NPB 500 x 200 x 107.3	107.3	506	202	12	19
NPB 500 x 200 x 107.32	107.32	506	202	12	19
NPB 500 x 200 x 79.36	79.36	497	200	8.4	14.5
NPB 500 x 200 x 79.4	79.4	497	200	8.4	14.5
NPB 500 x 200 x 90.69	90.69	500	200	10.2	16
NPB 500 x 200 x 90.7	90.7	500	200	10.2	16
NPB 550 x 210 x 105.52	105.52	550	210	11.1	17.2
NPB 550 x 210 x 122.52	122.52	556	212	12.7	20.2
NPB 550 x 210 x 92.08	92.08	547	210	9	15.7
NPB 600 x 220 x 107.57	107.57	597	220	9.8	17.5
NPB 600 x 220 x 108	107.6	597	220	9.8	17.5
NPB 600 x 220 x 122.4	122.5	600	220	12	19
NPB 600 x 220 x 122.45	122.45	600	220	12	19
NPB 600 x 220 x 154.47	154.47	610	224	15	24
NPB 600 x 220 x 154.5	154.5	610	224	15	24
NPB 600 x 220 x 183.52	183.52	618	228	18	28
NPB 750 x 270 x 173.00	173	762	267	14.4	21.6
NPB 750 x 270 x 174.54	174.54	760	270	14.4	23.6
NPB 750 x 270 x 185.00	185	766	267	14.9	25.4
NPB 750 x 270 x 196.00	196	770	268	15.6	26.6

Section	Sectional Weight (kg/m)	Height (mm)	Width (mm)	Web Thickness (mm)	Flange Thickness (mm)
WPB 150 x 150 x 23.50	23.5	152	152	5.8	6.8
WPB 150 x 150 x 30.11	30.11	158	153	6.5	9.4
WPB 150 x 150 x 34.6	34.6	150	150	9	11.8
WPB 150 x 150 x 36.97	36.97	162	154	8	11.5
WPB 160 x 160 x 22.75	22.75	148	160	4.5	7
WPB 160 x 160 x 30.44	30.44	152	160	6	9
WPB 160 x 160 x 42.59	42.59	180	160	8	13
WPB 160 x 160 x 76.19	76.19	186	166	14	23
WPB 200 x 200 x 34.65	34.65	200	200	5.5	8
WPB 200 x 200 x 37.34	37.34	190	200	6.1	8.9
WPB 200 x 200 x 42.26	42.26	194	200	6.5	10
WPB 200 x 200 x 50.92	50.92	202	200	8	12
WPB 240 x 240 x 47.40	47.4	230	240	6.5	12
WPB 240 x 240 x 60.32	60.32	240	240	7.5	17
WPB 240 x 240 x 61.30	61.3	224	240	9	15
WPB 240 x 240 x 83.20	83.2	248	240	10	32
WPB 300 x 300 x 126.7	126.7	320	300	12	20.5
WPB 300 x 300 x 186.0	186	340	305	16	30.5
WPB 300 x 300 x 237.92	237.92	340	310	21	39
WPB 300 x 300 x 245.0	245	359	309	21	40
WPB 300 x 300 x 97.6	97.6	310	300	9	15.5
WPB 340 x 300 x 104.78	104.78	330	300	9.5	16.5
WPB 340 x 300 x 134.16	134.16	340	300	12	21.5
WPB 340 x 300 x 290.64	290.64	377	309	21	40
WPB 340 x 300 x 78.90	78.9	320	300	8.5	11.5
WPB 450 x 300 x 139.76	139.76	440	300	11.5	21
WPB 450 x 300 x 171.12	171.12	450	300	14	26
WPB 450 x 300 x 263.33	263.33	478	307	21	40
WPB 450 x 300 x 99.75	99.75	425	300	10	13.5
WPB 600 x 300 x 128.8	128.8	571	300	12	15.5
WPB 600 x 300 x 153.0	153	583	300	12	20
WPB 600 x 300 x 177.8	177.8	590	300	13	25
WPB 600 x 300 x 211.9	211.9	600	300	16	30
WPB 600 x 300 x 285.5	285.5	620	305	21	40
WPB 700 x 300 x 149.9	149.9	670	300	13	17
WPB 700 x 300 x 173.0	173	680	305	12	21
WPB 700 x 300 x 204.5	204.5	690	300	15	27
WPB 700 x 300 x 240.5	240.5	700	300	17	32
WPB 700 x 300 x 300.7	300.7	716	304	21	40
WPB 800 x 300 x 171.5	171.5	770	300	14	18
WPB 800 x 300 x 224.4	224.4	790	300	15	28
WPB 800 x 300 x 262.3	262.3	800	300	18	33
WPB 800 x 300 x 317.4	317.4	814	303	21	40
WPB 800 x 300 x 377.0	377	826	306	26	46
WPB 900 x 300 x 224.0	224	880	307	15	25.5
WPB 900 x 300 x 251.6	251.6	890	300	16	30
WPB 900 x 300 x 291.5	291.5	900	300	19	35
WPB 900 x 300 x 333.0	333	910	302	27	40

Note: All dimensions listed on this page are provided for reference only. Product availability is subject to stock levels and cannot be guaranteed.
